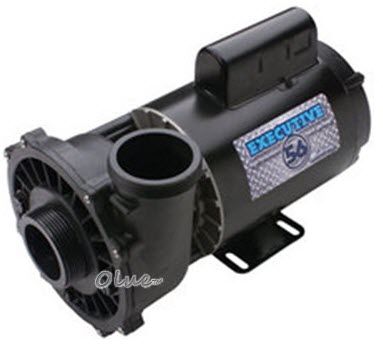

5HP Waterway 56 Frame Side Pump 220V, 2" x 2" , 3722021-1D

Free Shipping

5HP WW 56 Frame Side Pump 220V 2 x 2 - WW3722021-1D, Amp Draw (Low / High Speed) 4.8 / 16.4 Amps, 1725/3450 RPM.

5 HP 56 Frame hot tub pump is generally, the largest pump in the hot tub industry.

This pump is designed specifically to run the motor cooler, have more power and use with less energy.

2.0"" intake and 2.0" discharge, with actual measurements 3" outside on intake and discharge.

When the new pump is installed, old O-rings could shrink or not in good shape once it exposes to air. It is recommended to replace the suction and discharge union O-rings or gaskets with new one. Otherwise, possible leaks and over tightening may lead to crack unions.

Side discharge of the wet end could be rotated to left or right side easily. May have to use additional barb fitting instead of a drain plug for the front face plate.
