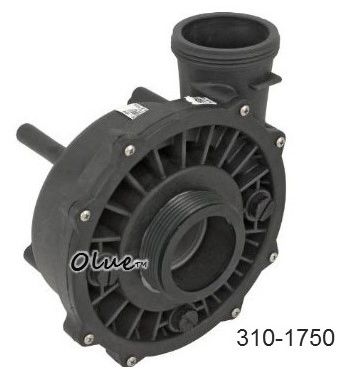

Waterway Executive 5 HP 56 Frame side Wet End 310-1750
Waterway Executive 5 HP 56 Frame side Wet End 310-1750 for Hot Tubs.
You can measure your Waterway motor, whether it is 56 Frame or 48 Frame by measuring the diameter of the motor. If it is, 5-1/2" approximately, it would be Executive 48 Frame. If it is, 6-1/4" approximately, it would be Executive 56 Frame.
Out Side Diameter of Suction or Discharge side physical dimensions are 3-1/16”.
2" male threaded suction and discharge side of the Wet End, fit into 2” Waterways Pump Unions.
Wet end includes Face Plate Volute O-ring, Seal, Impeller, Wear Ring, Face Plate, Drain Plugs, Drain Plug O-rings and Face plate suction cover screws.
